Delta PLC – DVP-EX2 Series, DVP20EX200T & DVP20EX200R (8DI/6DO/4AI/2AO) Programmable Logic Controller

The Delta PLC  DVP-EX2 Series – DVP20EX200T & DVP20EX200R are compact yet versatile controllers from the Delta built for small-scale automation with integrated analog I/O. Each model features 20 total I/O points and includes built-in analog inputs/outputs, making them ideal for applications requiring mixed-signal processing and cost-effective logic control.

Both models share the same architecture and I/O count but differ in output type:

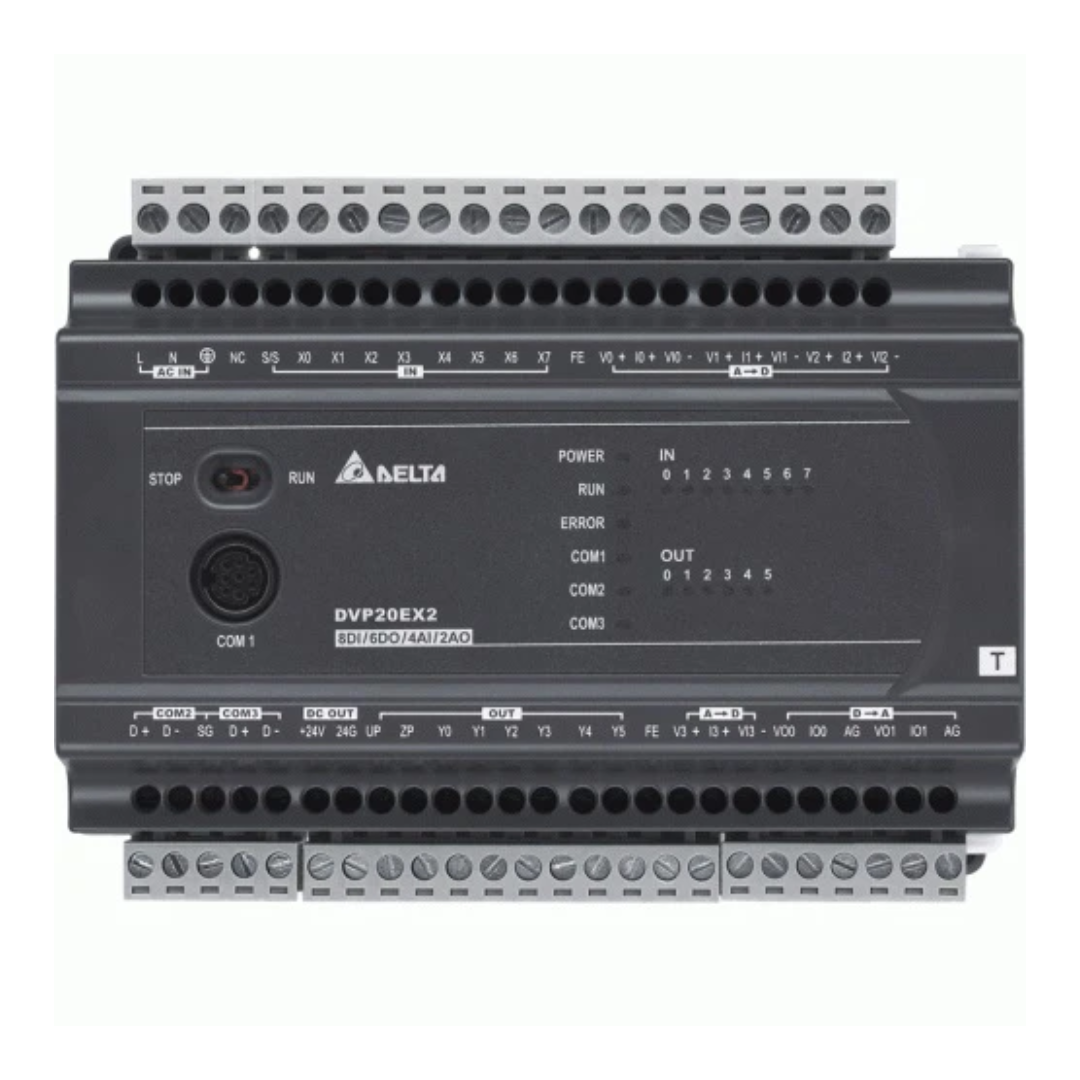

• DVP20EX200T has transistor (NPN) outputs for fast switching

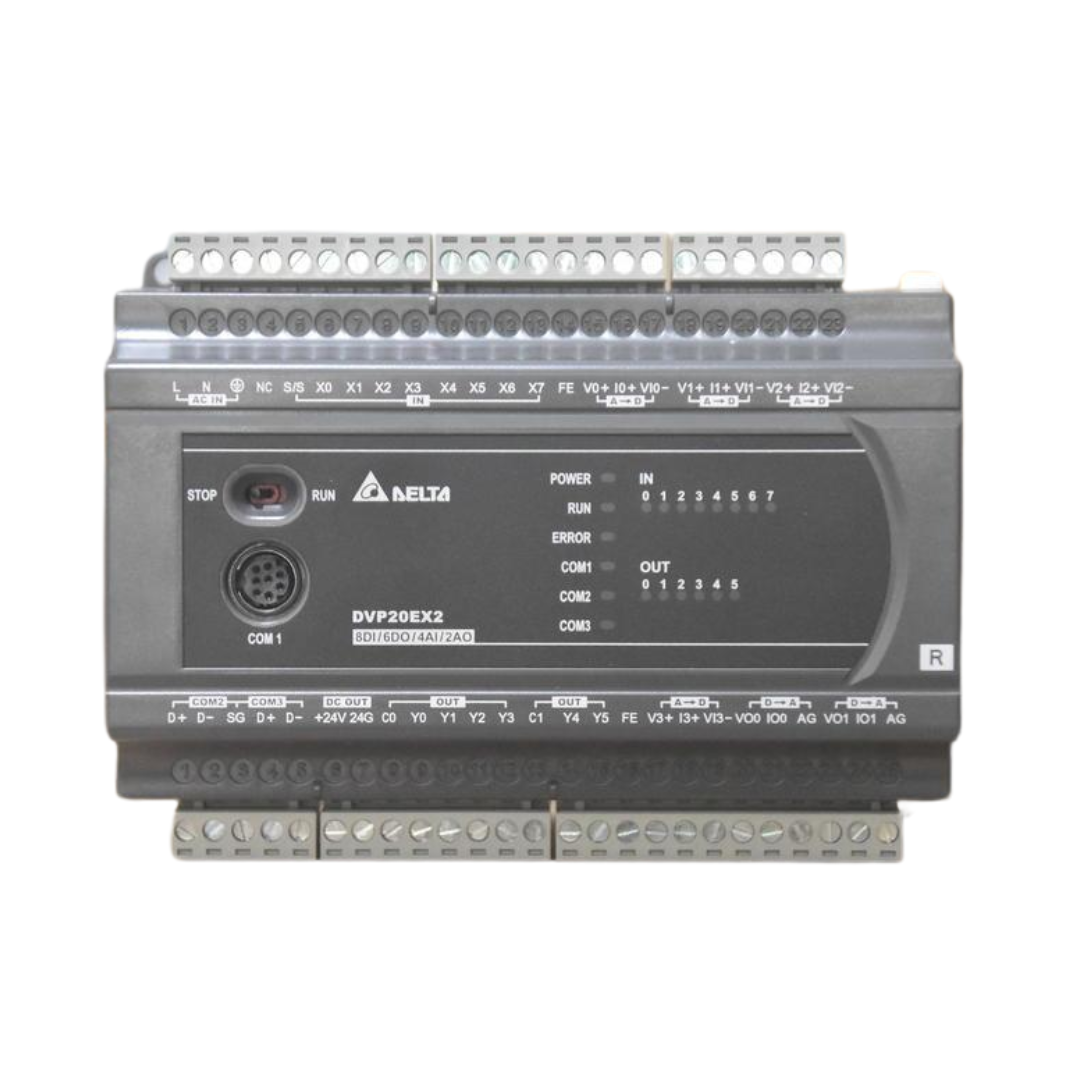

• DVP20EX200R has relay outputs for isolated load control

🔍 Key Features – Delta PLC DVP-EX2 Series

• Power Supply: 100–240 V AC

• Total I/O: 20 (8 DI, 6 DO, 4 AI, 2 AO)

• Analog Input Range: ±10 V / ±20 mA

• Analog Output Range: 0–10 V / 0–20 mA

• Resolution: 12-bit for both AI and AO

• Pulse Output: 2 channels (Y0/Y1) up to 10 kHz

• Communication Ports:

  • 1 × RS-232

  • 2 × RS-485

• Supported Protocols: Modbus RTU/ASCII

• Program Capacity: 16k steps

• Data Registers: 10k words

• Execution Speed: 0.35 μs per basic instruction

• Mounting: DIN rail

• Software: ISPSoft

• Protection Class: IP20

📐 Physical Dimensions

• Height: 90 mm

• Width: 90 mm

• Depth: 60 mm

• Weight: Approx. 180 g

• Cooling: Natural convection

🧰 Typical Applications

• Tank level and flow regulation

• Temperature-controlled mixing systems

• Analog-based small machinery

• Dosing and batching systems

• Motor speed and torque control

• Compact SCADA-based operations

🔗 Compatibility

• Fully compatible with Delta right-side expansion modules:

  • Analog/digital I/O

  • Load cell and temperature modules

  • Communication adapters

• Easily integrates with Delta HMIs, VFDs, and servo drives
