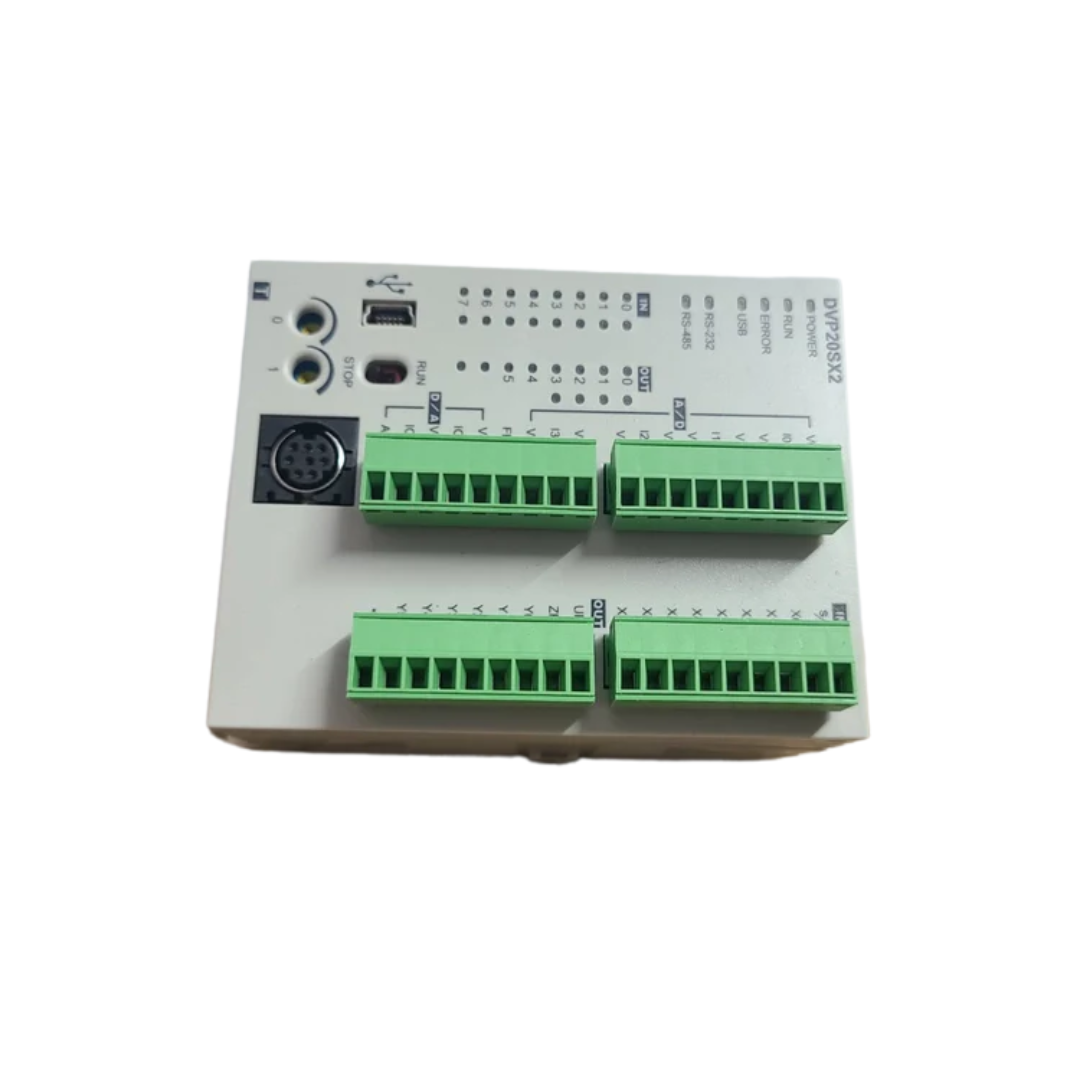

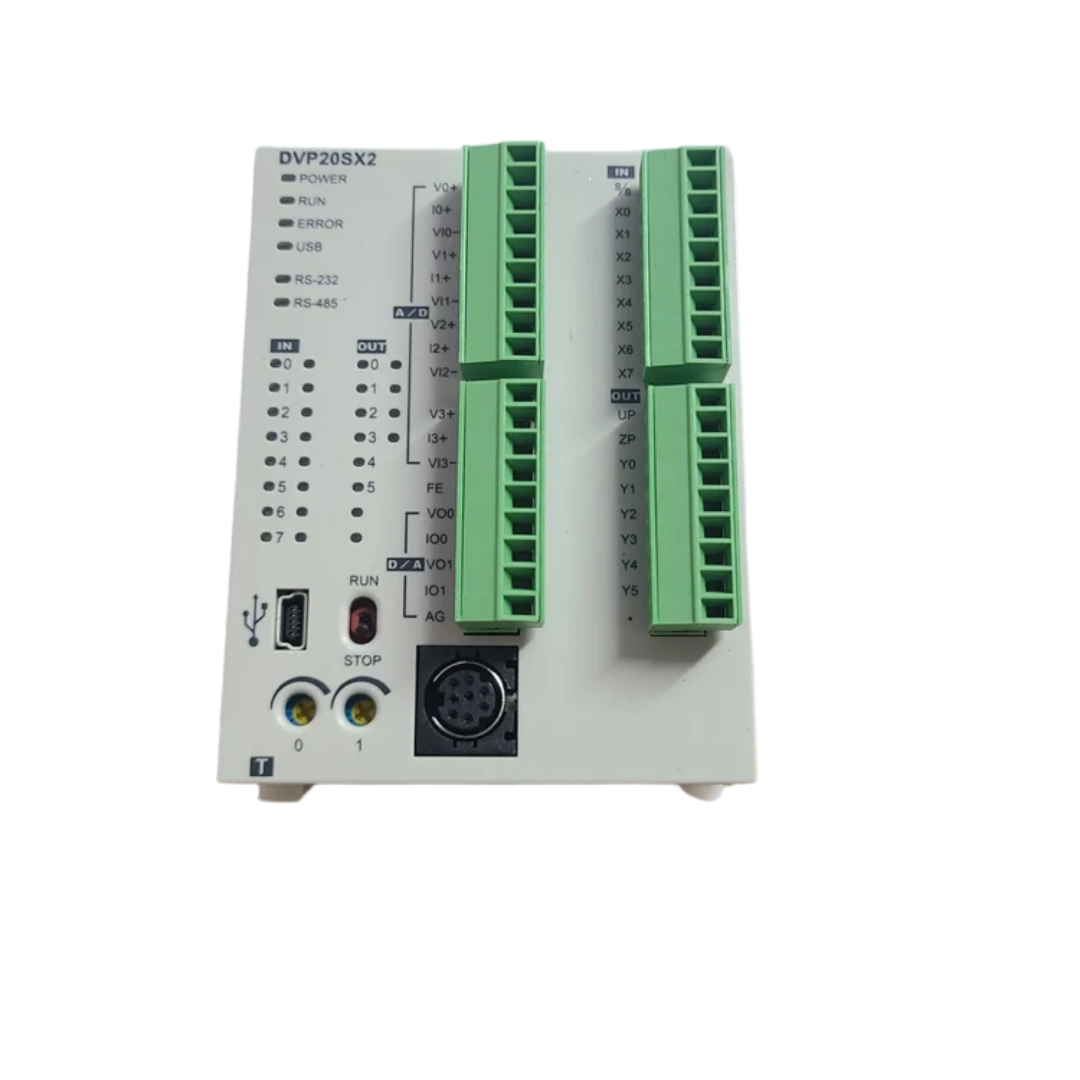

Delta DVP-SX2 Series PLC – DVP20SX211T 20 (8 DI/ 6 DO & 4 AI/ 2 AO)

Delta DVP-SX2 Series PLC – DVP20SX211T

The DVP20SX211T from Delta’s DVP-SX2 Series is a compact, analog-capable PLC designed for precise process automation. Combining 8 digital inputs, 6 digital outputs, 4 analog inputs, and 2 analog outputs in one slim unit, it offers a cost-effective yet powerful control solution. Furthermore, it supports high-speed pulse output, making it well-suited for small-to-medium scale automation that requires both digital and analog signal handling.

Key Features – DVP-SX2 Series

• Power Supply: 24 V DC

• Total I/O: 20 (8 DI, 6 DO, 4 AI, 2 AO)

• Analog Input Range: ±10 V / ±20 mA

• Analog Output Range: 0–10 V / 0–20 mA

• Analog Resolution: 12-bit

• Pulse Output: 2-axis @ 100 kHz

• High-Speed Counters: 2 channels @ 100 kHz

• Communication Ports:

  • 2 × RS-485

  • 1 × RS-232

• Protocols Supported: Modbus RTU/ASCII

• Program Capacity: 16k steps

• Data Registers: 10k words

• Execution Speed: 0.35 μs (basic instruction)

• Mounting: DIN Rail

• Protection: IP20

• Software: ISPSoft

📐 Physical Dimensions

• Height: 90 mm

• Width: 60 mm

• Depth: 60 mm

• Weight: Approx. 170 g

• Cooling: Natural air circulation

🧰 Typical Applications

• Analog-controlled pumping systems

• Temperature-sensitive industrial ovens

• Flow and pressure monitoring

• Compact process skids

• Dosing and blending stations

• HVAC automation systems

🔗 Compatibility

• Works with Delta’s right-side expansion modules:

  • Digital & analog I/O

  • Load cell, temperature, and communication modules

• Seamlessly integrates with Delta VFDs, HMIs, and servo drives
