Delta DVP-SS2 Series PLC – DVP14SS211R & DVP14SS211T, 14 I/O, Relay & Transistor Output

Delta DVP14SS211R / DVP14SS211T – SS2 Series Slim PLCs

The DVP14SS211R and DVP14SS211T are standard slim PLCs from Delta’s DVP-SS2 Series, designed for space-saving automation applications. Each model features 8 digital inputs and 6 digital outputs, powered by 24V DC.

Built for high-speed processing (0.35 µs), they include built-in RS-232 and RS-485 ports and support Modbus ASCII/RTU for flexible communication.

While both models share many core features, they differ in output type:

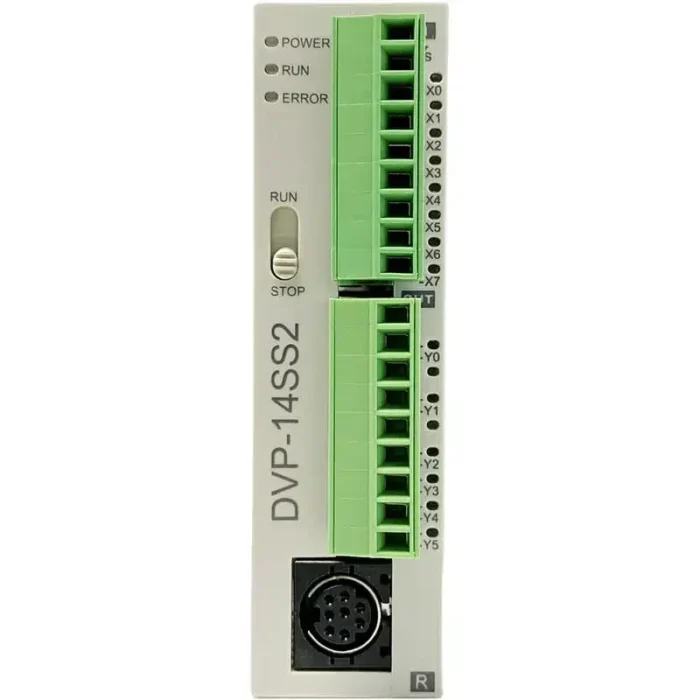

• DVP14SS211R: Relay outputs

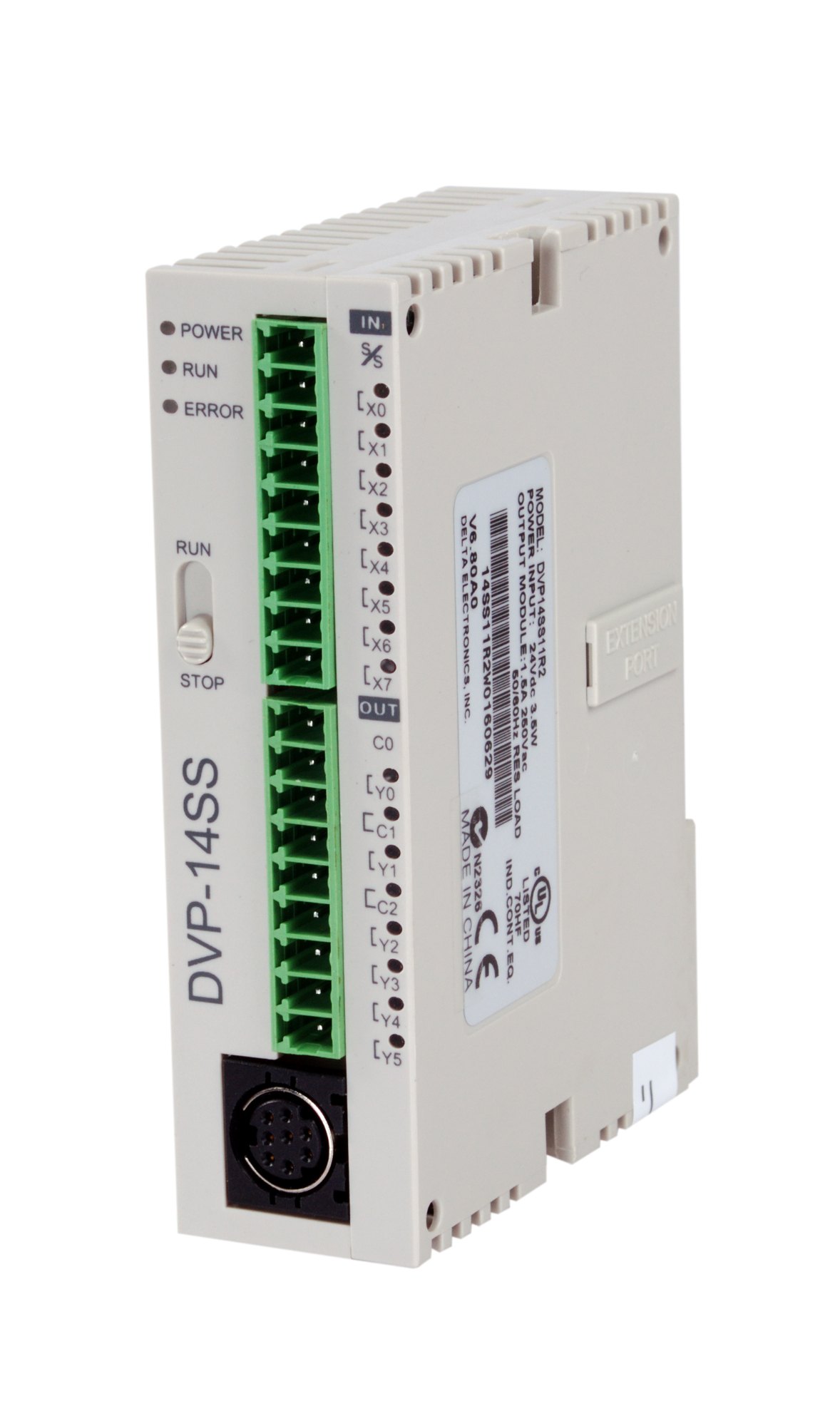

• DVP14SS211T: Transistor (NPN) outputs

🔧 Key Features – Delta DVP-SS2 Series PLC

• 32-bit CPU for fast instruction processing
• Program memory: 8k steps
• Data registers: 5k words
• Max I/O expansion: Up to 480 points
• Compact: Only 25.2 mm wide
• DIN rail mounting
• High-speed pulse output & counter input
• Input response: 3.5 µs ON, 20 µs OFF

🧰 Typical Applications

• Compact machinery control
• Automation control panels
• Packaging and bottling systems
• Material handling and conveyors
• HVAC and building automation

🔄 Communication Capabilities (Both Models)

• 1x RS-232, 1x RS-485 communication ports
• Supports Modbus ASCII/RTU, PLC Link, and user-defined protocols
• Right-side expansion: digital I/O, analog, motion, communication modules

📐 Dimensions – Delta DVP-SS2 Series PLC

• Height: 96 mm
• Width: 25.2 mm
• Depth: 90 mm
• Mounting: DIN rail
• Protection: IP20

🛠 Compatibility

• Delta right-side extension modules:
  • Digital I/O
  • Analog I/O
  • Temperature modules
  • Load cell modules
• Supports ISPSoft and WPLSoft
• Works with HMI, VFDs, and servos via Modbus RTU
