Phoenix Contact QUINT Series Power Supply – Single & Three Phase Variants

Phoenix Contact QUINT SMPS: Reliable Industrial Power Supply

Phoenix Contact QUINT SMPS provides premium and consistent power, especially for critical industrial power supply applications. With robust features like Selective Fuse Breaking (SFB) and POWER BOOST, this Phoenix Contact power supply ensures your equipment runs reliably under varying loads.

Enhanced Protection and Reliability with SFB Technology

SFB technology trips standard circuit breakers at six times the rated current. As a result, selective and rapid protection reduces unnecessary downtime and prevents component damage in industrial applications.

POWER BOOST: Handling Heavy Inrush Loads

Furthermore, the POWER BOOST function supplies extra current to support heavy inrush loads during startup. This ensures even demanding machinery starts smoothly, without the risk of voltage drops or delays.

Preventive Monitoring for Proactive Maintenance

Additionally, preventive function monitoring continuously tracks load conditions. It immediately alerts users in case of overload, voltage variation, or overheating. Therefore, you can plan maintenance proactively, reducing unplanned interruptions in your industrial systems.

Flexible Voltage Range for Various Industrial Setups

With an adjustable output voltage from 5 V DC to 56 V DC, the QUINT SMPS easily fits various industrial setups. Because of this, it supports a wide range of applications like PLCs, sensors, actuators, and control panels.

Compact DIN Rail Power Supply Design

Thanks to its compact DIN rail power supply design, it also saves space in control cabinets. Moreover, it complies with global industrial standards, ensuring long service life and operational safety.

Single Phase Models (1AC)

These are ideal for compact control panels and small-to-medium setups requiring high output stability in single phase SMPS for automation.

• QUINT 5A – QUINT-PS-1AC/24DC/5 (2866750)

• QUINT 10A – QUINT-PS-1AC/24DC/10 (2866763)

• QUINT 15A – QUINT 4-PS/1AC/12DC/15 (2904608)

• QUINT 20A – QUINT-PS-1AC/24DC/20 (2866776)

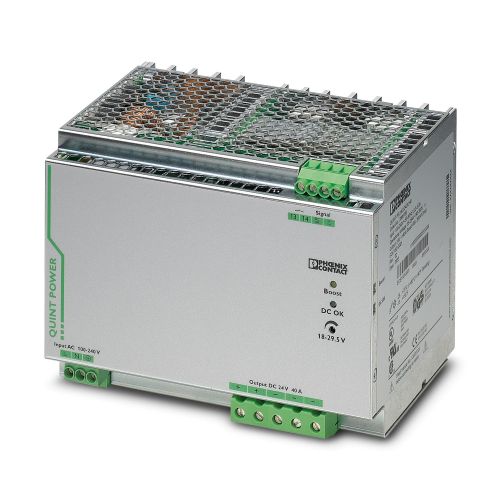

• QUINT 40A – QUINT-PS/1AC/24DC/40 (2866789)

Three Phase Models (3AC)

These models are preferred for high-demand industrial power supply applications and centralized power distribution in large setups, such as three phase SMPS for automation.

• QUINT 5A – QUINT-PS/3AC/24DC/5 (2866734)

• QUINT 10A – QUINT-PS/3AC/24DC/10 (2866705)

• QUINT 20A – QUINT-PS/3AC/24DC/20 (2866792)

• QUINT 40A – QUINT-PS/3AC/24DC/40 (2866802)

Advanced Diagnostics and Protection

Not only do these models enhance operational efficiency, but they also offer advanced diagnostics, dynamic boost, and selective fuse protection, making them ideal for mission-critical industrial applications.

Why Choose the QUINT SMPS Series?

So, whether you’re planning a new system or upgrading an old one, the QUINT SMPS series offers unmatched performance, reliability, and system integration.

Key Features:

• Regulated 24V DC output for industrial loads

• POWER BOOST delivers up to 200% start-up current

• Preventive monitoring via LED and signal output

• Operates reliably in extreme temperatures

• Space-saving DIN rail mounting

• Available in 5A to 40A ratings

• Compatible with single and three-phase inputs
