MCS20068R5 – nVent HOFFMAN Floor Standing Enclosure, 2000x600x800 mm

MCS20068R5 – nVent HOFFMAN Floor Standing Enclosure, 2000x600x800 mm

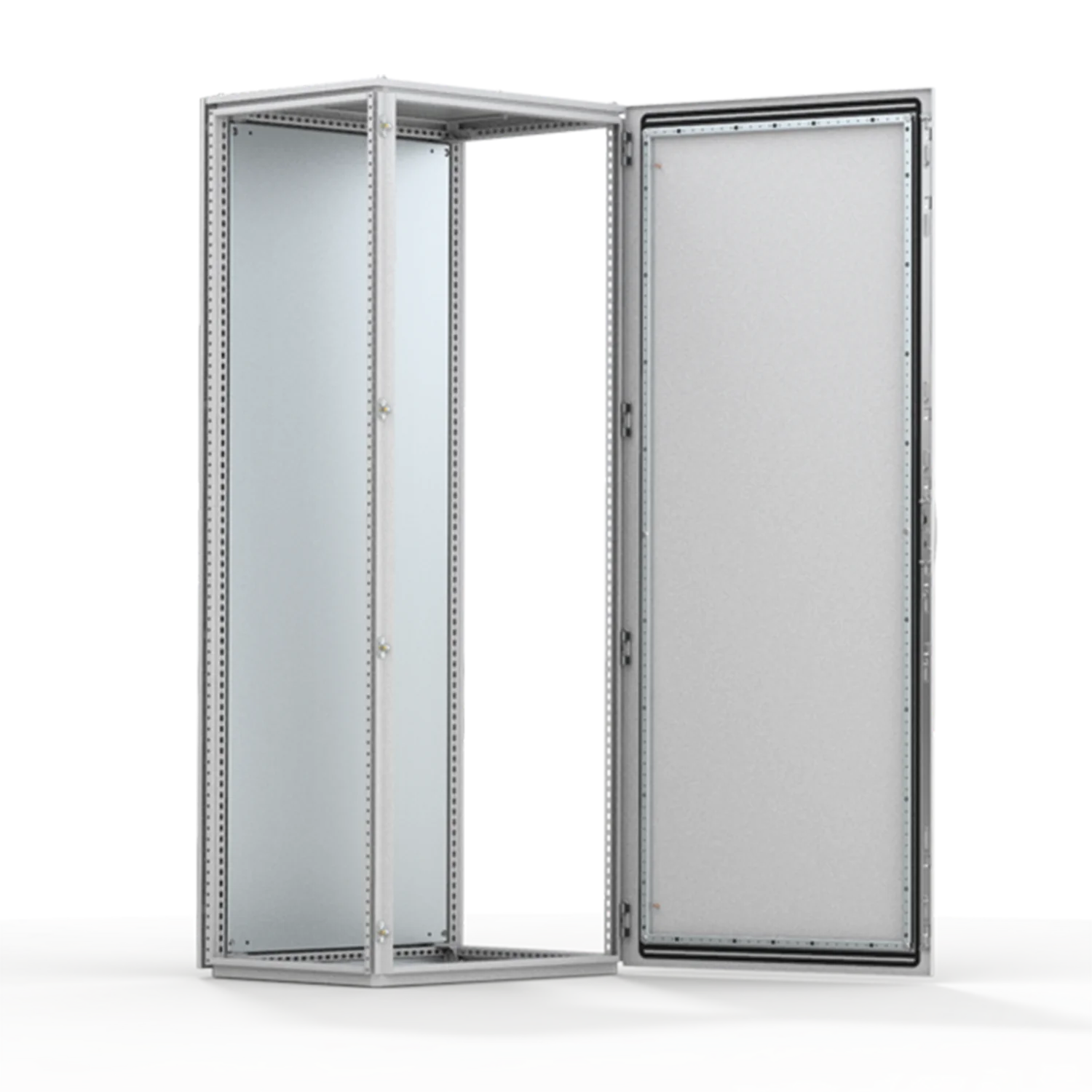

The MCS20068R5 modular floor standing enclosure from nVent HOFFMAN delivers high performance and reliable protection in demanding industrial environments.

Built from durable mild steel and rated IP55, it safeguards your automation and electrical systems from dust, dirt, and water.

Its modular structure allows flexible configurations, so you can easily adapt it to your specific application.

Moreover, with global certifications and rugged construction, this enclosure ensures safety, compliance, and ease of integration in one complete solution.

Key Features:

✅ Single-door modular design ideal for automation and control systems

✅ IP55 protection rating guards against dust and water ingress

✅ 4-point espagnolette locking system ensures secure door closure

✅ Reversible door with four hinges supports left or right opening

✅ Fully welded frame with DIN-standard hole pattern enables flexible mounting

✅ Baying-ready design allows standalone or combined installation

Additional Features:

✅ Rear panel secured using M6 Torx screws (optional rear door available)

✅ Removable roof panel allows quick internal access during maintenance

✅ Door frame includes a 25 mm mounting pattern for accessory fitting

✅ Comes with three or four bottom plates (based on enclosure depth)

✅ Mounting plate adjusts in 25 mm increments using the MPD02 kit

✅ Delivered fully assembled on a pallet for quick deployment

✅ Certified under CE, UL, CSA, IEC, and DNV standards

Technical Specifications of MCS20068R5:

✔ Model Number: MCS20068R5

✔ Height: 2000 mm (78.74 in)

✔ Width: 600 mm (23.62 in)

✔ Depth: 800 mm (31.50 in)

✔ Material: Mild Steel

✔ Mounting Plate Thickness: 3 mm (Galvanized)

✔ Frame & Panel Thickness:
 • Frame: 1.5 mm
 • Door: 2 mm
 • Rear, Roof, Side Panels: 1.5 mm
 • Bottom Plates: 1 mm

✔ Finish: Powder Coated

✔ Color: Light Gray (RAL 7035)

✔ Protection Rating: IP55 | TYPE 12 | IK10

✔ Weight: Approx. 120 kg

✔ Mounting Plate: Included

✔ Rear Panel: Included

✔ Certifications: UL 508A, CSA C22.2, CE, IEC 62208, NEMA/EEMAC Type 12, DNV
