MAS0808030R5 – nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 800x800x300mm, IP66

MAS0808030R5 – nVent HOFFMAN Mild Steel Wall-Mount Enclosure, 800x800x300mm

The MAS0808030R5 from nVent HOFFMAN is a heavy-duty single door enclosure designed for industrial automation, control panels, and electrical distribution.

This wall mounting enclosure offers IP66-rated protection, ensuring excellent resistance against dust, water ingress, and mechanical impact for long-term durability.

Key Features:

✅ Rugged & Corrosion-Resistant – Made from seam-welded mild steel enclosure, finished with RAL 7035 powder coating for durability and longevity.

✅ Superior Protection Rating – Certified IP66, NEMA Type 4 & 12, and IK10, providing exceptional defense against dust, water ingress, and external damage.

✅ Optimized Cable Entry – A rear gland plate opening enables structured and efficient cable routing.

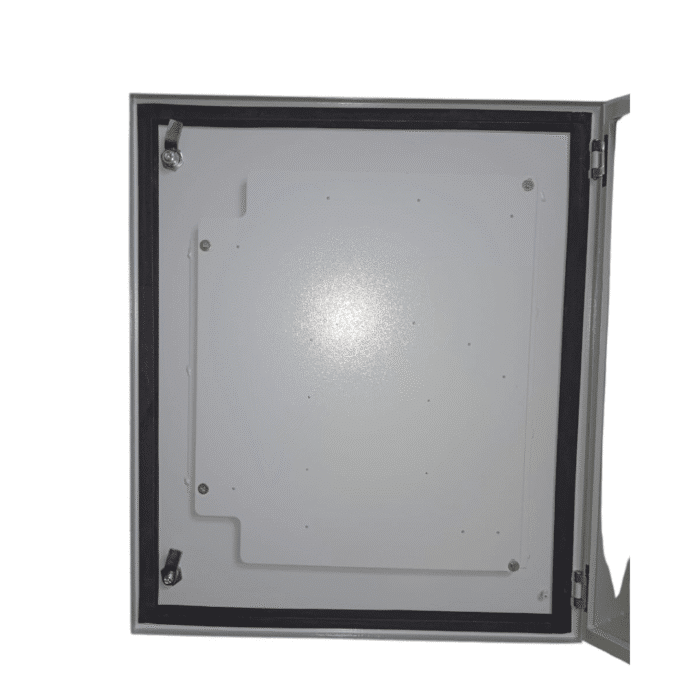

✅ Adjustable Mounting Plate – Marked at 10mm intervals for accurate component positioning, with depth adjustment using AMG accessories.

✅ Advanced Locking Mechanism – Equipped with a double-bit 3mm lock featuring 90° rotation and an anti-vibration system for enhanced security.

✅ Flexible Door Configuration – The 130° opening door with concealed removable hinges supports left or right-hand installation. A polyurethane gasket ensures a tight and secure seal.

✅ Complete Installation Kit – Includes an enclosure, door, mounting plate, gland plate, gaskets, key, and all required accessories for a quick setup.

Technical Specifications:

✔ Brand: nVent HOFFMAN

✔ Material: Mild steel enclosure (1.5mm thick body & door; 2mm galvanized steel mounting plate)

✔ External Dimensions: 800mm (H) x 800mm (W) x 300mm (D)

✔ Usable Panel Area: 770mm x 750mm | Maximum Mounting Depth: 282mm

✔ Color: Light Gray (RAL 7035)

✔ Weight: Approx. 42.5kg

✔ Certifications: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

Conclusion:

The nVent HOFFMAN single door enclosure MAS0808030R5 is a reliable solution for industrial control panels, automation systems, and electrical protection applications.

With its mild steel enclosure construction, superior protection rating, and flexible installation, it is a perfect choice for demanding industrial environments.
