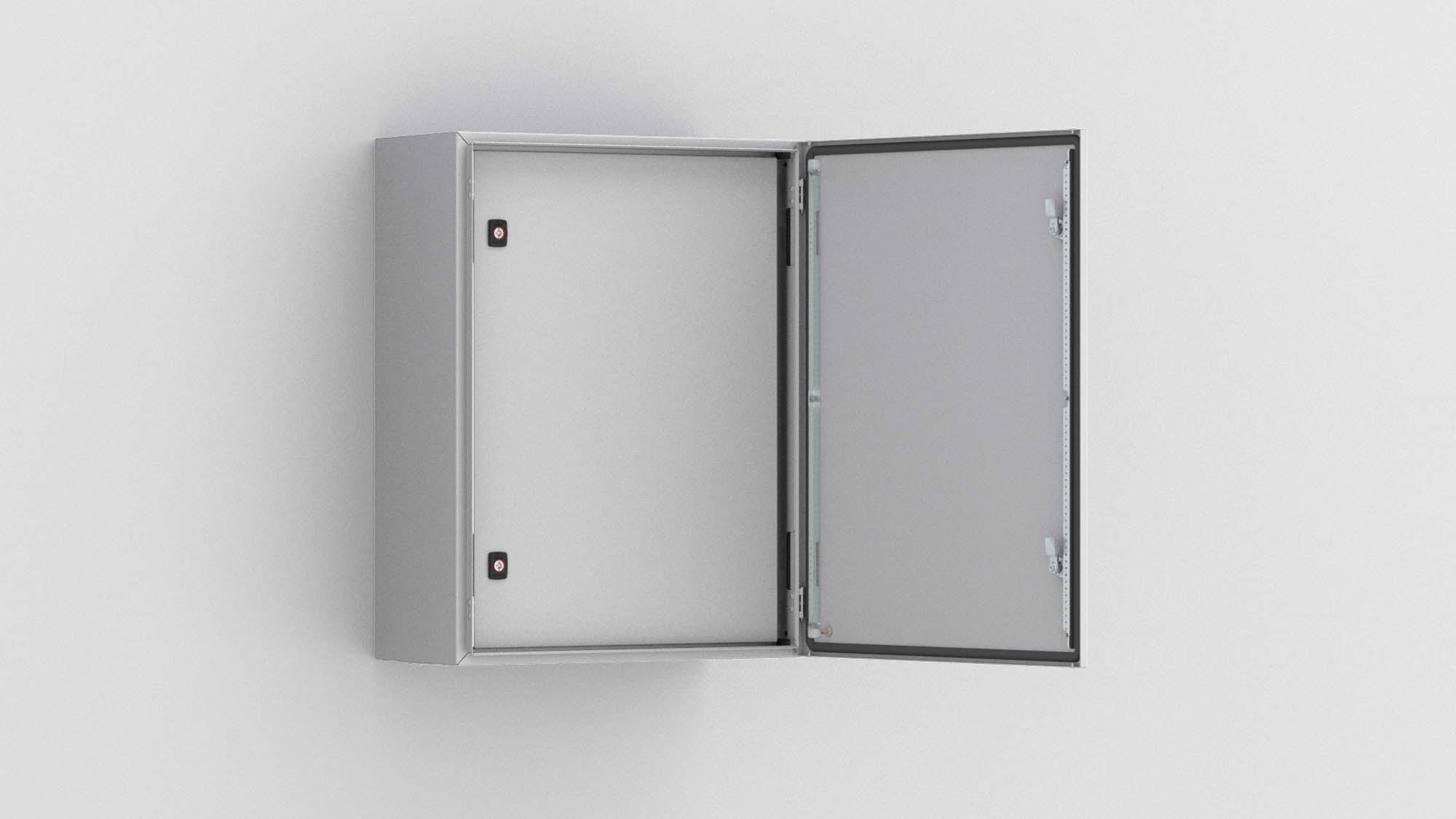

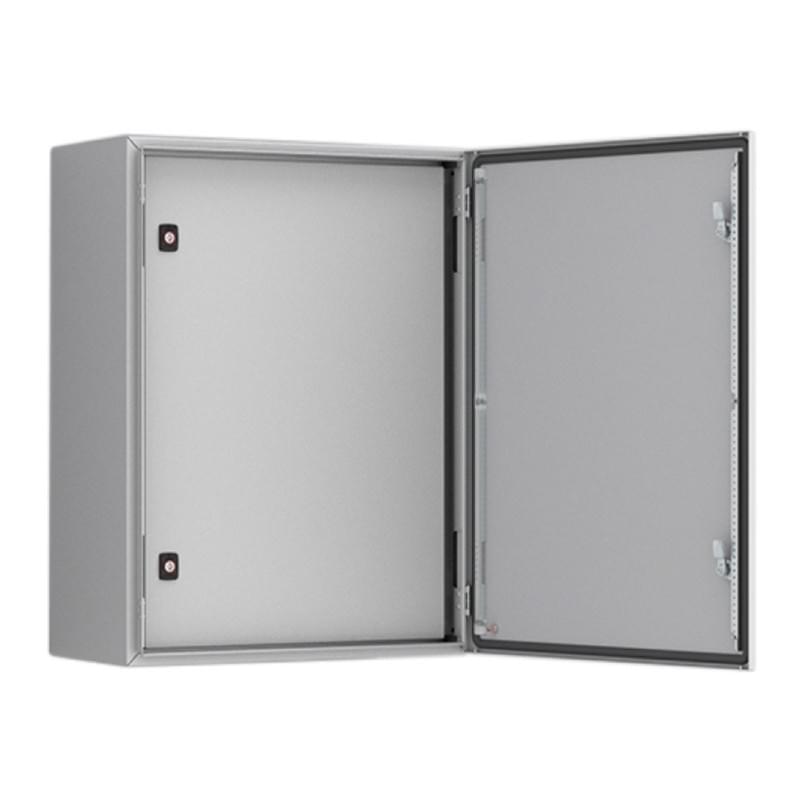

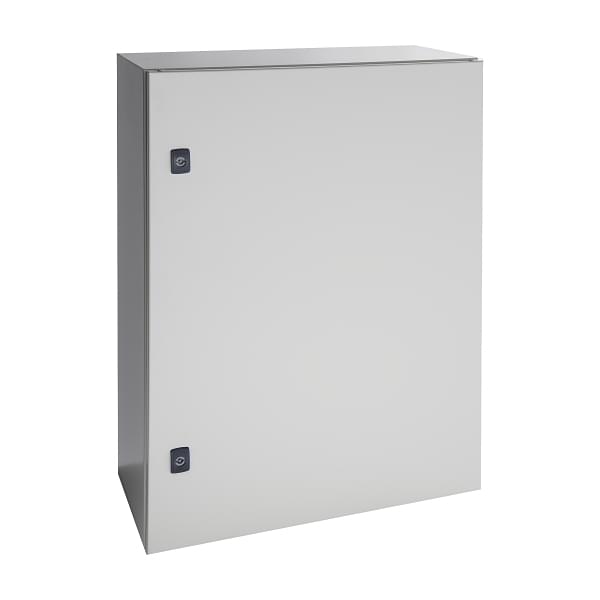

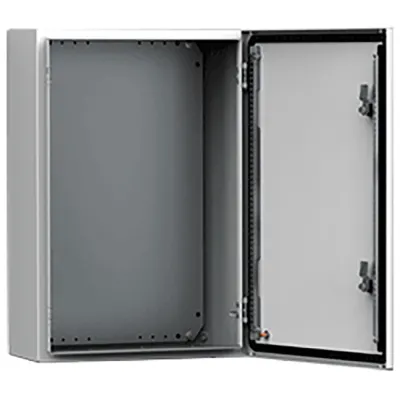

MAS0505030R5 – nVent HOFFMAN Mild Steel Single-Door Enclosure (500×500×300mm)

The MAS0505030R5 from nVent HOFFMAN is a rugged mild steel enclosure built for wall-mounted industrial and automation applications. Because it carries an IP66 rating, the unit offers complete dust and water protection, which directly improves component reliability and system performance.

Key Features

• Durable and Corrosion-Resistant – It uses seam-welded mild steel with a RAL 7035 powder coating, so the enclosure remains strong and long-lasting.

• Superior Protection – With IP66, Type 4, 12, and IK10 compliance, it guarantees safety even in tough conditions.

• Streamlined Cable Management – A rear gland plate opening allows quick and efficient wiring.

• Flexible Mounting Plate – Marked at 10mm intervals and adjustable in depth using the AMG accessory, it supports accurate positioning.

• Reliable Locking System – The 3mm double-bit lock ensures secure access with 90° movement and anti-vibration design.

• Adaptable Door Design – The 130° door opens smoothly, while concealed hinges make left or right-hand installation possible. A polyurethane gasket seals the enclosure tightly.

• Complete Setup Package – The box includes the enclosure, door, mounting plate, gland plate, gaskets, key, and accessories, so installation is straightforward.

Technical Specifications

• Brand: nVent HOFFMAN

• Material: Mild Steel (1.5mm body & door) + 2mm galvanized steel mounting plate

• Dimensions: H 500 × W 500 × D 300 mm

• Panel Size: 470 × 450 mm | Max Mounting Depth: 282 mm

• Color: Light Gray (RAL 7035)

• Weight: 16 kg

• Compliance: UL 508A, NEMA Type 4 & 12, CSA, CE, UKCA, DNV, EAC

📌 Why Choose This Enclosure?

With its robust steel construction, high protection ratings, and user-friendly installation features, the MAS0505030R5 is an excellent choice for housing automation and electrical components. Moreover, it delivers long-lasting performance while reducing installation time, which makes it highly reliable for demanding industrial environments.
