MAD1201030R5 – nVent HOFFMAN Double-Door Mild Steel Wall-Mount Enclosure, 1200x1000x300mm, Rated IP55

MAD1201030R5 – nVent HOFFMAN Double-Door Mild Steel Wall-Mount Enclosure, 1200x1000x300mm

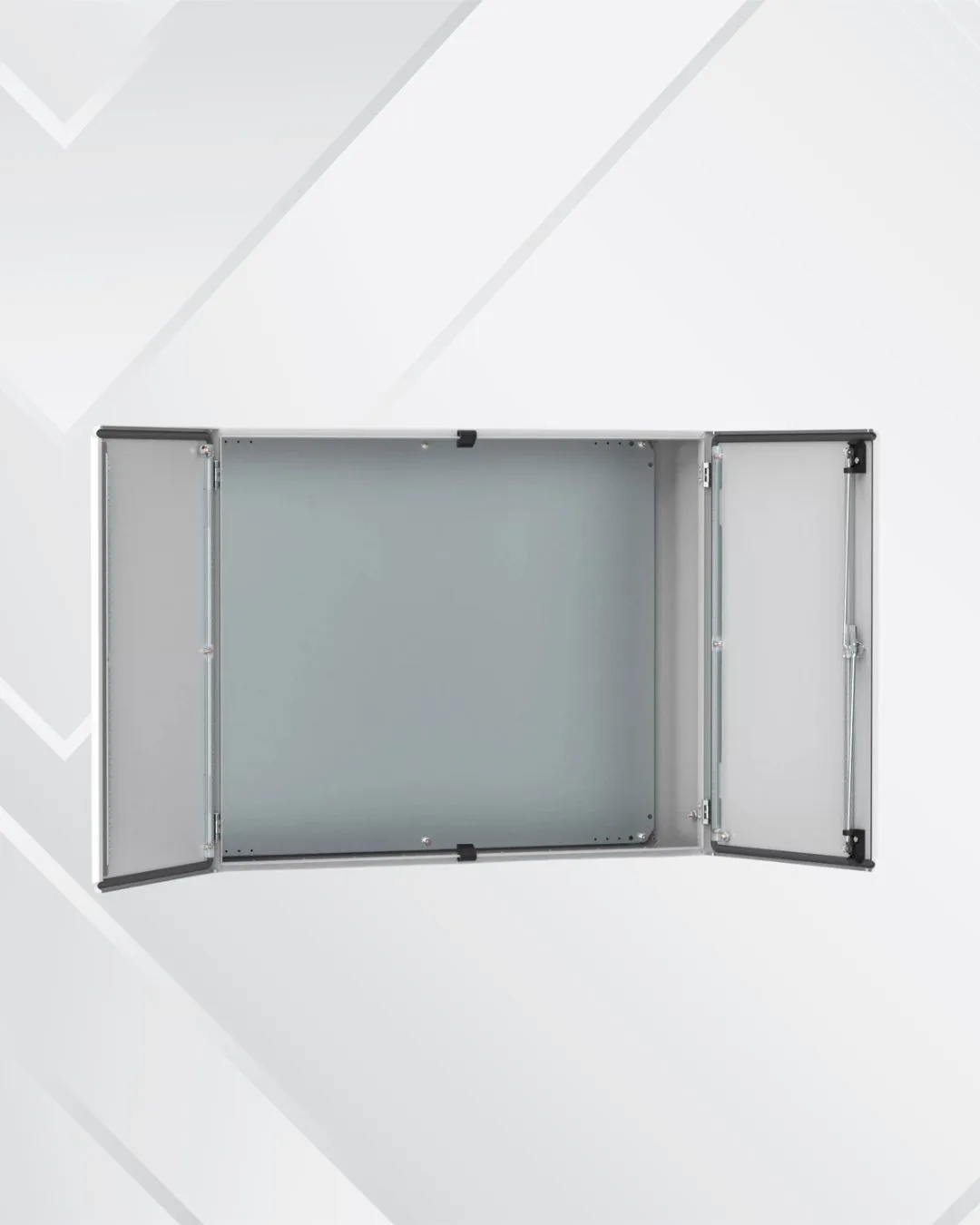

The nVent HOFFMAN MAD1201030R5 is a double-door mild steel enclosure engineered for wall-mounted applications in industrial automation, electrical control panels, and power distribution. With an IP55 protection rating, it safeguards equipment against dust and water, ensuring durability in demanding environments.

Key Features:

✅ Durable Mild Steel Construction – Made from 1.5mm seam-welded mild steel, providing superior strength and long-term reliability.

✅ Double-Door Access – Designed for easy equipment installation and maintenance, ideal for compact industrial spaces.

✅ Secure Locking System – Equipped with a three-point espagnolette locking mechanism and a 3mm double-bit lock for enhanced security.

✅ Adjustable Mounting Plate – Includes a 2mm galvanized steel mounting plate, pre-marked at 10mm intervals, with depth adjustment using the AMG accessory for precise positioning.

✅ Optimized Cable Entry – Features a rear gland plate opening, ensuring smooth and organized cable management.

✅ Protective Sealing – A one-piece injected polyurethane gasket provides a dust- and water-resistant seal.

✅ Flexible Door Opening – Doors open at 130°, featuring concealed removable hinges with captive pins for convenient access.

✅ Outdoor Installation Ready – Recommended to install a rain hood (ARF) and apply a 100% polyester corrosion-resistant paint coating for outdoor applications.

Technical Specifications of MAD1201030R5:

✔ Brand: nVent HOFFMAN

✔ Material: 1.5mm mild steel body, 2mm steel doors, 2mm galvanized steel mounting plate

✔ External Dimensions: 1200mm (H) x 1000mm (W) x 300mm (D)

✔ Usable Depth: 282mm

✔ Color: Light Gray (RAL 7035)

✔ Protection Rating: IP55, NEMA Type 12, IK10

✔ Weight: Approximately 74kg

✔ Certifications: UL 508A, CSA, CE, UKCA, DNV, EAC
