HMIET6400, Schneider Electric HMI, 7-Inch ET6 Human Machine Interface, IP65 Rated

HMIET6400, Schneider Electric HMI, 7-Inch ET6 Human Machine Interface, IP65 Rated

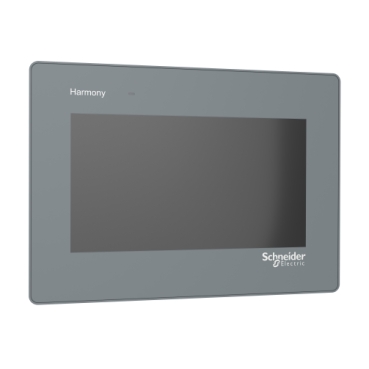

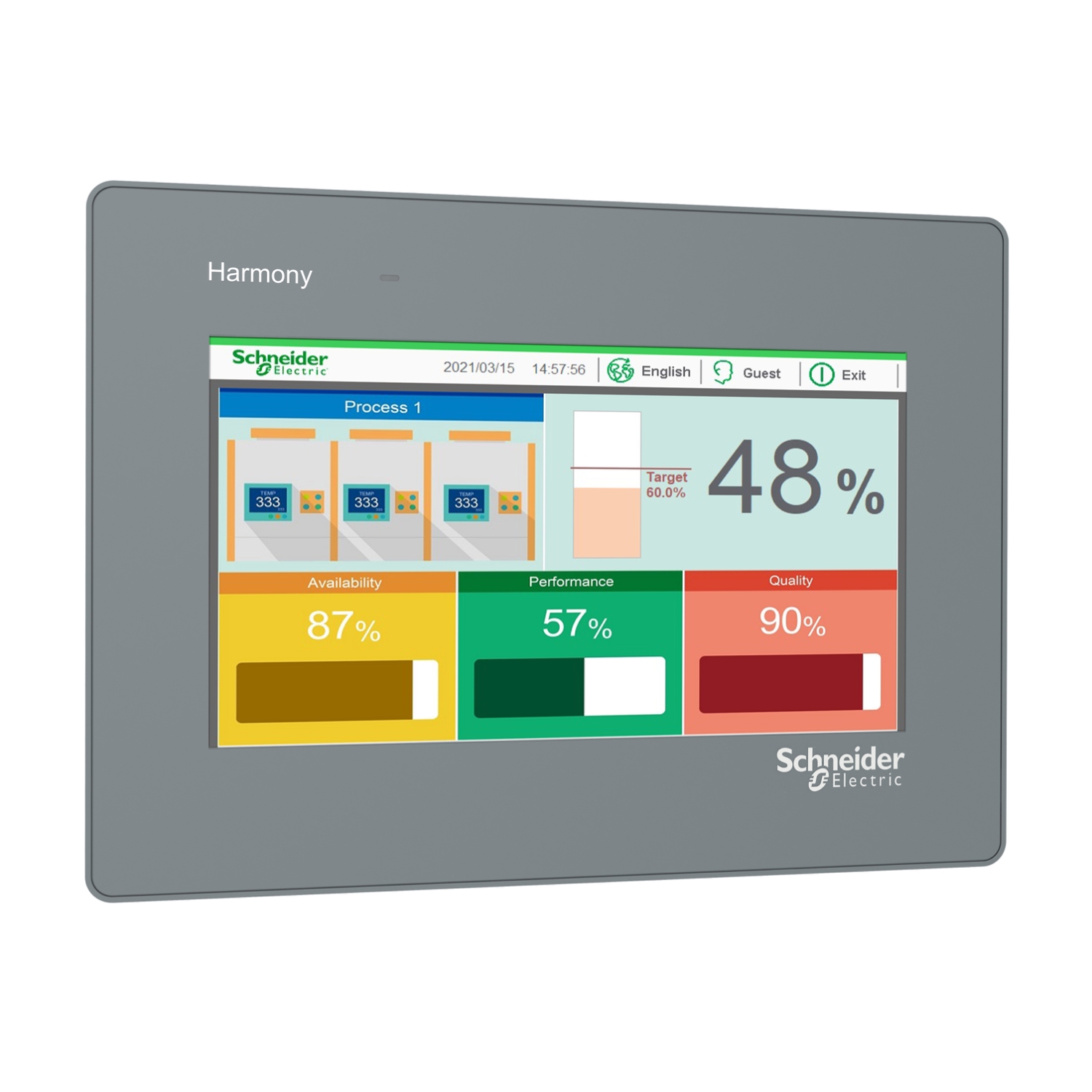

The HMIET6400 from Schneider Electric is a compact 7-inch ET6 Human Machine Interface built for industrial environments. It features a resistive touchscreen with clear visibility and a robust IP65-rated front for protection. Moreover, the HMI runs on an 800 MHz ARM Cortex-A8 processor, offering fast performance in real-time control applications.

Additionally, it includes multiple communication ports for seamless system integration. It is also compatible with Vijeo Designer Basic, ensuring quick configuration and deployment.

Key Features:

• 7-inch TFT resistive touchscreen for user-friendly operation

• 16 million colors with 800×480 resolution

• Industrial-grade ET6 HMI for reliable performance

• ARM Cortex-A8, 800 MHz processor for fast control response

• Built-in RTC for time-based automation

• 256 MB RAM and 128 KB NVRAM for efficient memory usage

• Dual COM ports, Ethernet, USB Host and Device support

• IP65-rated front panel for dust and water protection

• Supports Vijeo Designer Basic for easy setup

• Panel mount design with secure screw fixation

Technical Specifications of HMIET6400:

• Brand: Schneider Electric
• Series: Easy Harmony ET6
• Display: 7″ TFT LCD, 800 x 480 pixels, 16 million colors
• Touchscreen: Single-touch resistive
• Processor: ARM Cortex-A8, 800 MHz
• Memory: 256 MB system/application memory, 128 KB non-volatile memory
• Connectivity: 2 x COM ports (RS-232C and RS-422/485), 1 x Ethernet, 1 x USB 2.0 Type A, 1 x USB 2.0 Micro-B
• Power Supply: 24V DC
• Software Compatibility: Vijeo Designer Basic
• IP Rating: IP65 (front panel), IP20 (rear)
• Operating Temperature: 0°C to 50°C
• Mounting: Panel mount with 4 or 6 screws
• Dimensions: 205.5 mm (W) x 150.5 mm (H) x 45 mm (D)
• Weight: Approximately 0.60 kg
