Delta EL-W Series VFD (Variable Frequency Drives) – 1-Phase Input Models (0.25–3 HP) | AC Drives

Price range: ₹5,336.00 through ₹9,633.00

Delta EL-W Series VFDs offer compact motor control for 0.25–3 HP, featuring PID, Modbus RTU, and torque boost.


Models: VFD002EL21W-1, VFD004EL21W-1, VFD007EL21W-1, VFD015EL21W-1, VFD022EL21W


Note: Freight & GST excluded.

Clear
Compare
Add to wishlist
SKU: VFD002EL21W, VFD004EL21W, VFD007EL21W, VFD015EL21W, VFD022EL21W Categories: , , Tags: , ,
Description

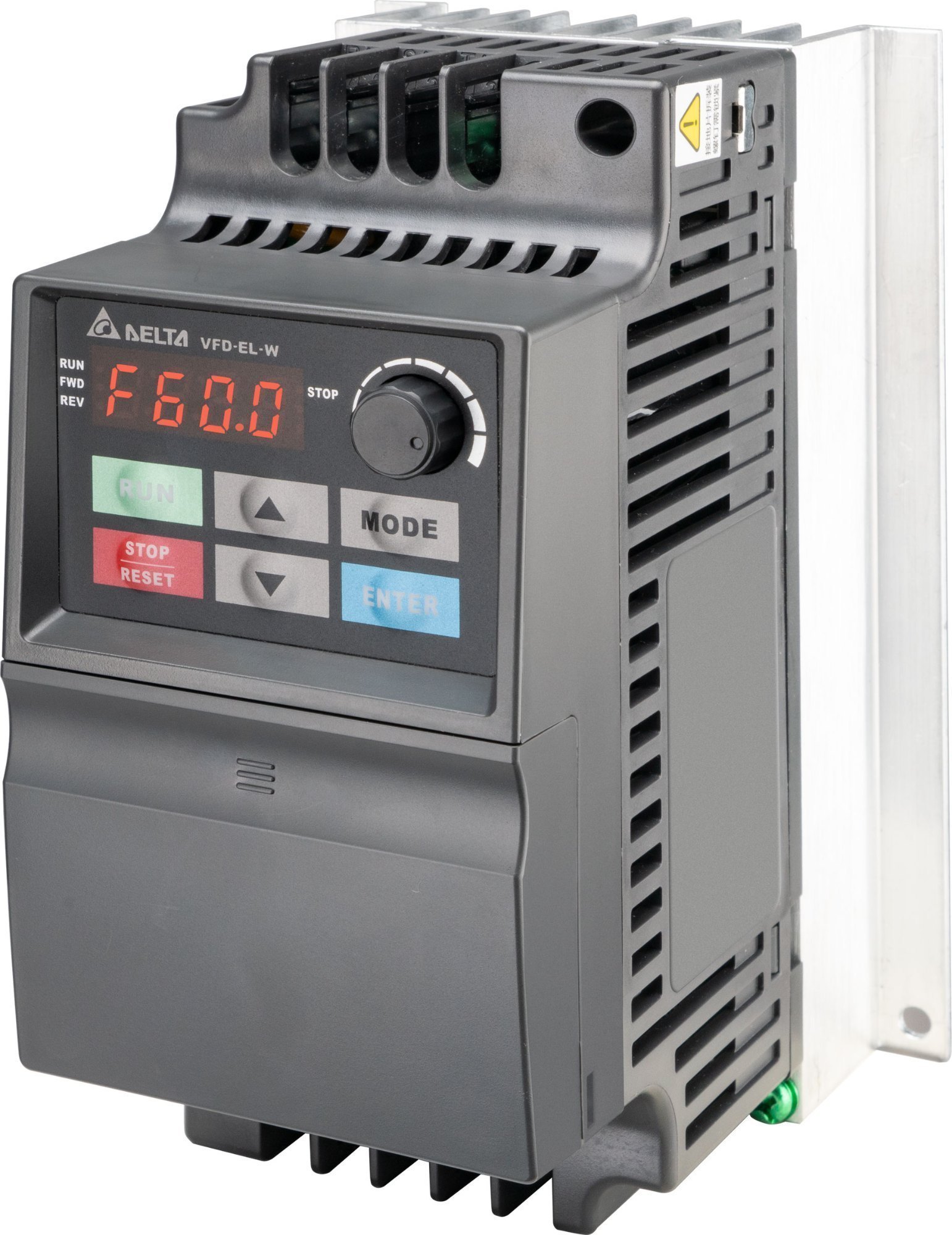

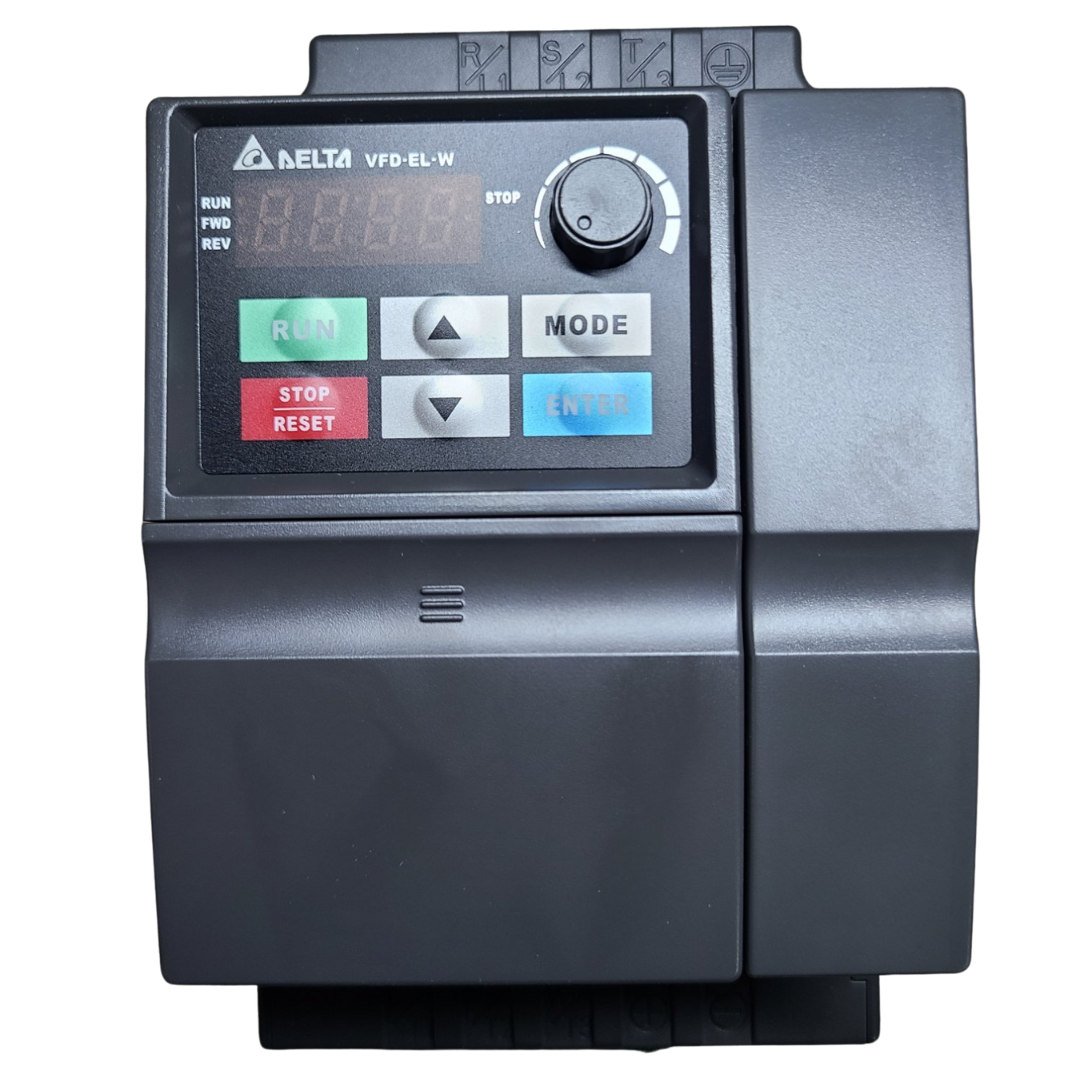

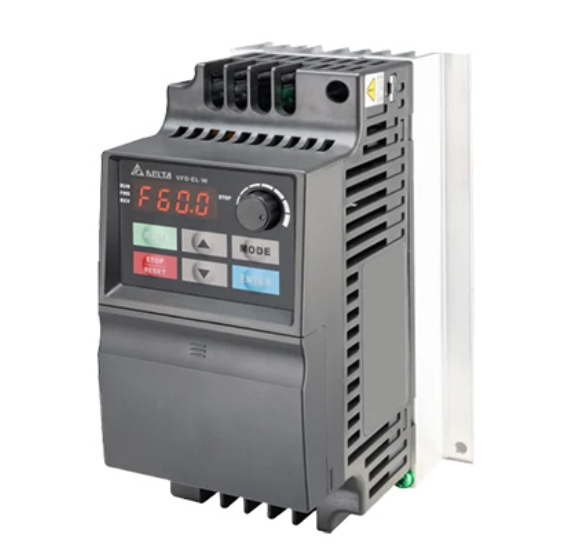

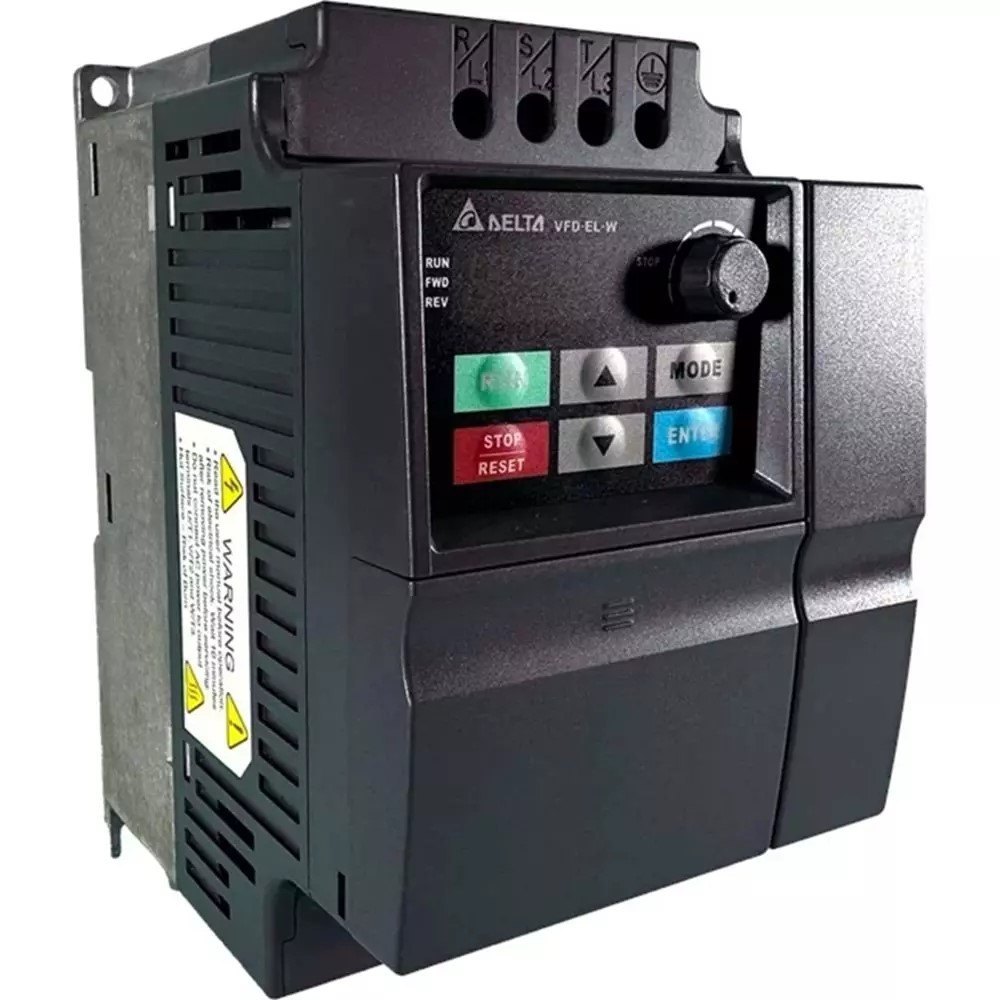

Delta EL-W Series VFD – 1-Phase Input Models (0.25–3 HP)

The Delta EL-W Series is a high-efficiency, sensorless vector control VFD line designed for compact automation needs. Supporting 1-phase 230V input with 3-phase motor output, these drives deliver reliable speed control, energy-saving operation, and robust protection. Whether you’re integrating into an OEM panel or retrofitting a small machine, EL-W drives simplify motor control with built-in Modbus RTU, PID feedback, and torque boost functionality.

Despite their slim design, EL-W drives handle applications ranging from 0.25 HP to 3 HP with natural or fan cooling, and support standard RS-485 communication. Their intuitive keypad and wide output frequency range ensure fast commissioning and precise operation.

Models: VFD002EL21W-1, VFD004EL21W-1, VFD007EL21W-1, VFD015EL21W-1, VFD022EL21W

 Features – Delta EL-W Series (1-Phase Input)

  • Input Voltage: 1-phase 200–240V AC (±10%)

  • Output Frequency: 0.1 to 400 Hz

  • Control Method: Sensorless vector control (V/F, SPWM)

  • PID Feedback Control: Built-in

  • Carrier Frequency: Adjustable (2–12 kHz)

  • Display: 4-digit LED keypad with FWD/REV/Stop indicators

  • Communication: Built-in RS-485 with Modbus RTU

  • Braking: DC braking supported (internal only)

  • EMC Filter: Built-in with removable RFI jumper

  • Mounting: Vertical panel or DIN rail

  • Cooling: Natural or forced-air cooling

  • Protection: Overvoltage, overcurrent, overload, ground fault, short circuit

  • Application Modes: Customizable via parameters (multi-step speed, torque boost, etc.)

Technical Specifications – 1-Phase Delta EL-W VFD Models

Model Motor Power Rated Output Current Output Capacity Frame Cooling Dimensions (mm) (W×H×D) Weight
VFD002EL21W-1 0.25 HP / 0.2 kW 1.6 A 0.6 kVA A1 Natural 92 × 162 × 128.7 ~1.0 kg
VFD004EL21W-1 0.5 HP / 0.4 kW 2.5 A 1.0 kVA A1 Natural 92 × 162 × 128.7 ~1.0 kg
VFD007EL21W-1 1 HP / 0.75 kW 4.2 A 1.9 kVA A1 Natural 92 × 162 × 128.7 ~1.0 kg
VFD015EL21W-1 2 HP / 1.5 kW 7.0 A 3.5 kVA B Fan 100 × 174 × 136 ~1.4 kg
VFD022EL21W 3 HP / 2.2 kW 10.5 A 5.0 kVA B Fan 100 × 174 × 136 ~1.4 kg

Typical Applications

  • Small conveyors and mixers

  • Blowers and exhaust fans

  • Laboratory and OEM automation

  • Packaging and filling machines

  • CNC spindle or motor control

Compatibility

  • Works with standard 3-phase AC induction motors

  • Fully integrable with Delta PLC, HMI, and sensor systems

  • Optional accessories: AC line reactor, EMI filters, fan kits

Additional information
Weight N/A
HP

0.025HP, 0.5HP, 1 HP, 2 HP, 3 HP
Model No.

VFD002EL21W-1, VFD004EL21W-1, VFD007EL21W-1, VFD015EL21W-1, VFD022EL21W
Series

El-W
