Delta E Series VFD – 3 Phase Drives (0.5–30 HP) | Rugged, Cost-Efficient Control with Built-in Braking

Delta E Series VFD 3 Phase (0.5–30 HP) – Built-in braking, vector control, RS-485. Models: VFD004E43A to VFD220E43A. Ideal for conveyors, pumps, HVAC.

models: VFD004E43A, VFD007E43A, VFD015E43A, VFD022E43A, VFD037E43A, VFD055E43A, VFD075E43A, VFD110E43A, VFD150E43A, VFD185E43A, VFD220E43A.

Note: GST & Freight Excluded

HP
Model No.
Series	Clear

SKU: VFD004E43A, VFD007E43A, VFD007E43T, VFD015E43A, VFD015E43T, VFD022E43A, VFD037E43A, VFD055E43A, VFD075E43A, VFD110E43A, VFD110E43S, VFD150E43A, VFD185E43A, VFD220E43A Categories: Delta, Industrial Automation, VFD Tag: Delta VFD

Description

The Delta E Series VFD 3 Phase models are highly reliable AC drives designed for precision motor control across industrial and OEM machinery. These drives, supporting a 3-phase 380–480V input, provide superior flexibility with sensorless vector control, built-in braking choppers, and configurable inputs/outputs. Additionally, their integrated EMI filters and IP20-rated enclosures ensure both electrical safety and installation ease.

With horsepower ratings ranging from 0.5 HP to 30 HP, the Delta VFD-E 3 Phase line covers a wide spectrum of applications. The lineup includes the following models:
VFD004E43A, VFD007E43A, VFD015E43A, VFD022E43A, VFD037E43A, VFD055E43A, VFD075E43A, VFD110E43A, VFD150E43A, VFD185E43A, VFD220E43A.
Thanks to their compact yet rugged design, these drives are the go-to choice for conveyors, blowers, compressors, and more.

⚙️ Features – Delta E Series VFD 3 Phase

Input Voltage: 3-phase 380–480V AC (±10%)
Output Voltage: 3-phase, proportional to input
Output Frequency: 0.1–600 Hz
Control Methods: V/F, Sensorless Vector Control
Built-in Braking Chopper: Included in all models
Cooling: Natural (low HP) or Fan cooling (high HP)
Protection Functions: Overload, Ground Fault, Overvoltage, Overcurrent, Overheating
Enclosure: IP20 with integrated EMI filter
Communication: RS-485 Modbus RTU
Overload Endurance: 150% of rated current for 60 seconds
Frequency Resolution: 0.01 Hz
Control System: SPWM (Sinusoidal PWM)

🧰 Typical Applications

Material conveyors and transfer systems
HVAC blowers and chillers
Water treatment pumps and agitators
Printing and packaging lines
Industrial panels and OEM automation

🔗 Compatibility

Compatible with 3-phase AC induction motors
Fully supports external braking resistors
Integrates seamlessly with Delta PLCs, HMIs, and motion sensors
Panel-mountable for compact machine design

📐 Physical Dimensions (All Models)

Model	Power	Output Current	Input Current	Frame Size	Weight
VFD004E43A	0.5 HP	1.5 A	1.9 A	A	~1.2 kg
VFD007E43A	1 HP	2.5 A	3.2 A	A	~1.2 kg

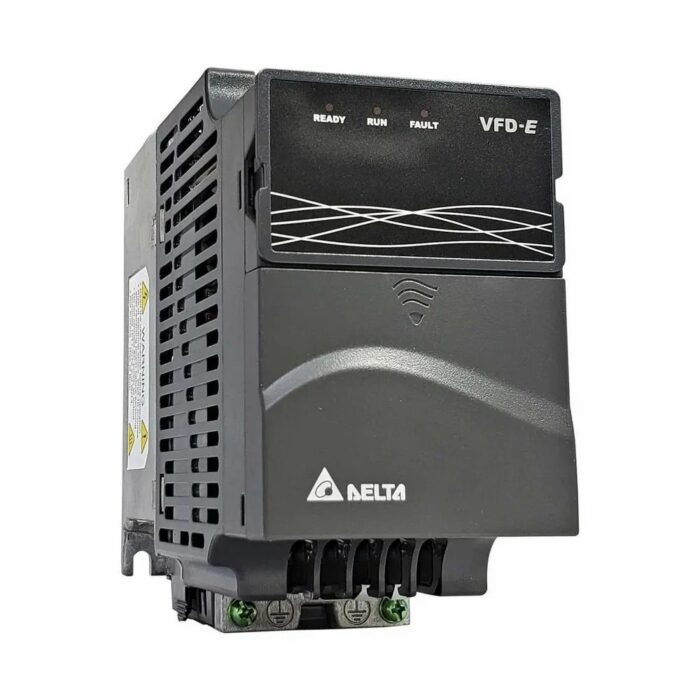

VFD015E43A	2 HP	4.2 A	4.3 A	A	~1.2 kg

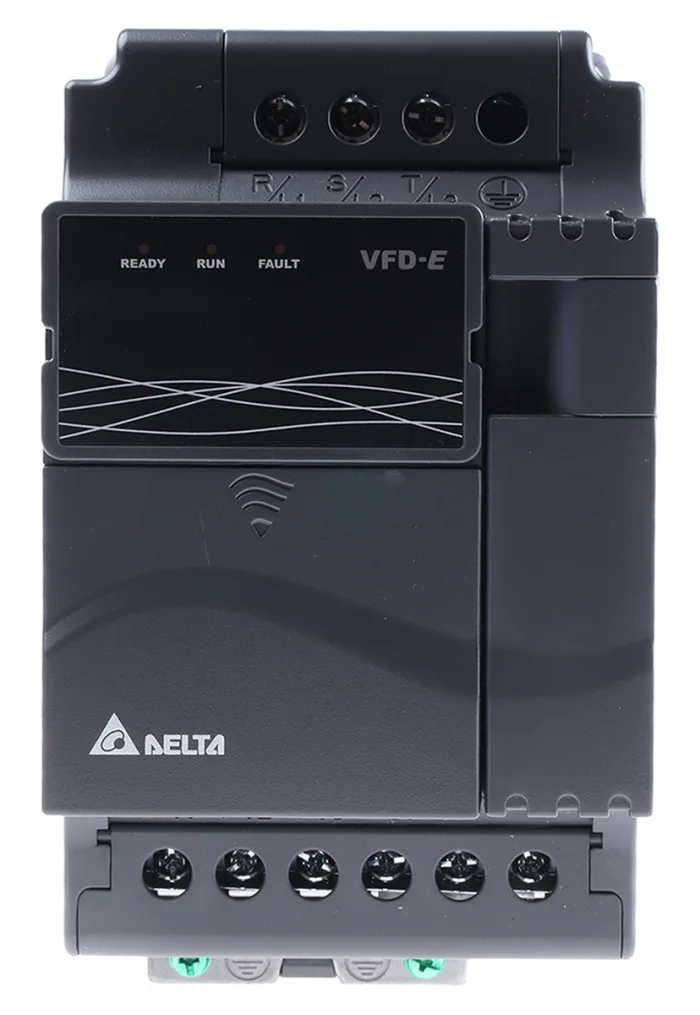

VFD022E43A	3 HP	5.5 A	7.1 A	B	~1.9 kg

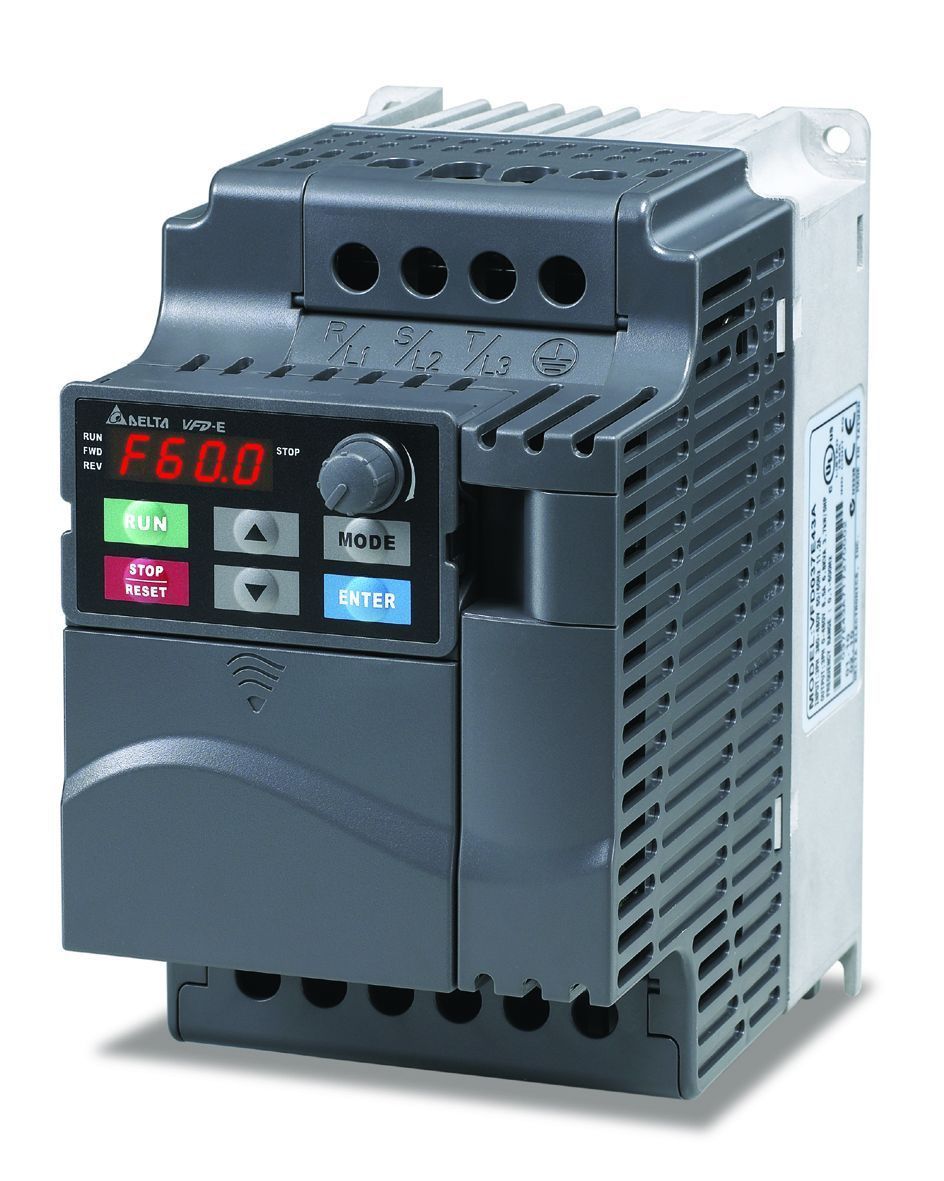

VFD037E43A	5 HP	8.2 A	11.2 A	B	~1.9 kg

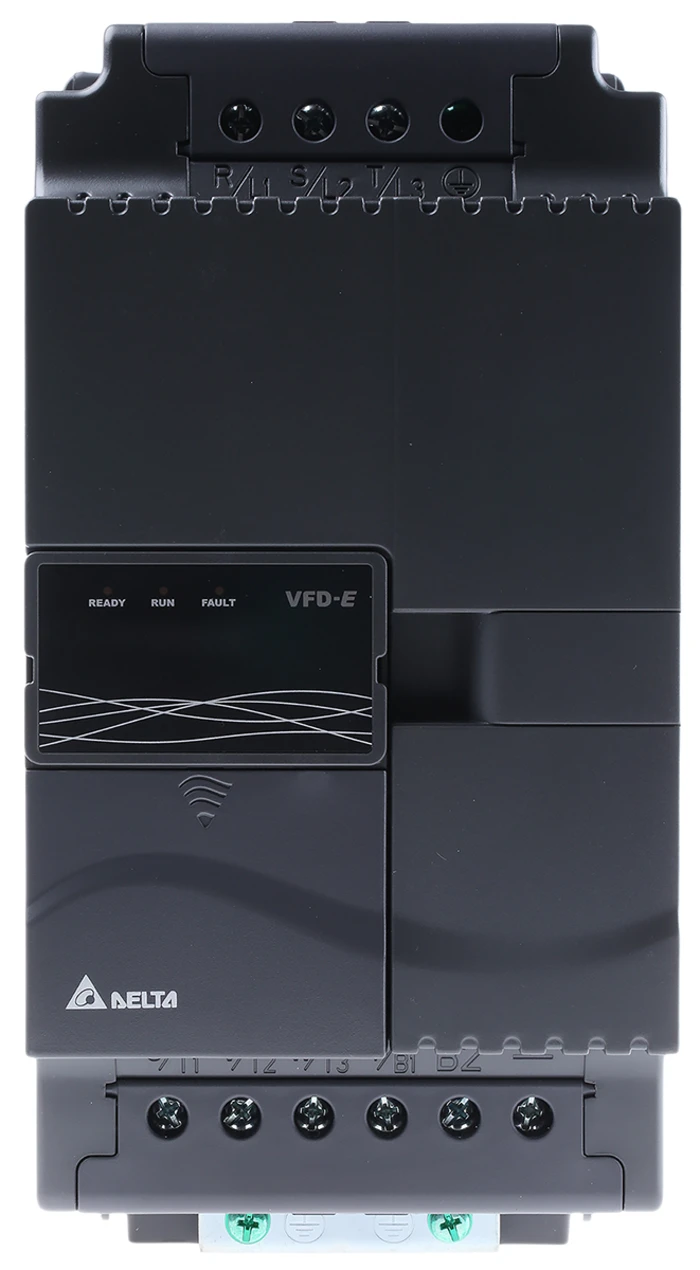

VFD055E43A	7.5 HP	13 A	14 A	C	~4.2 kg

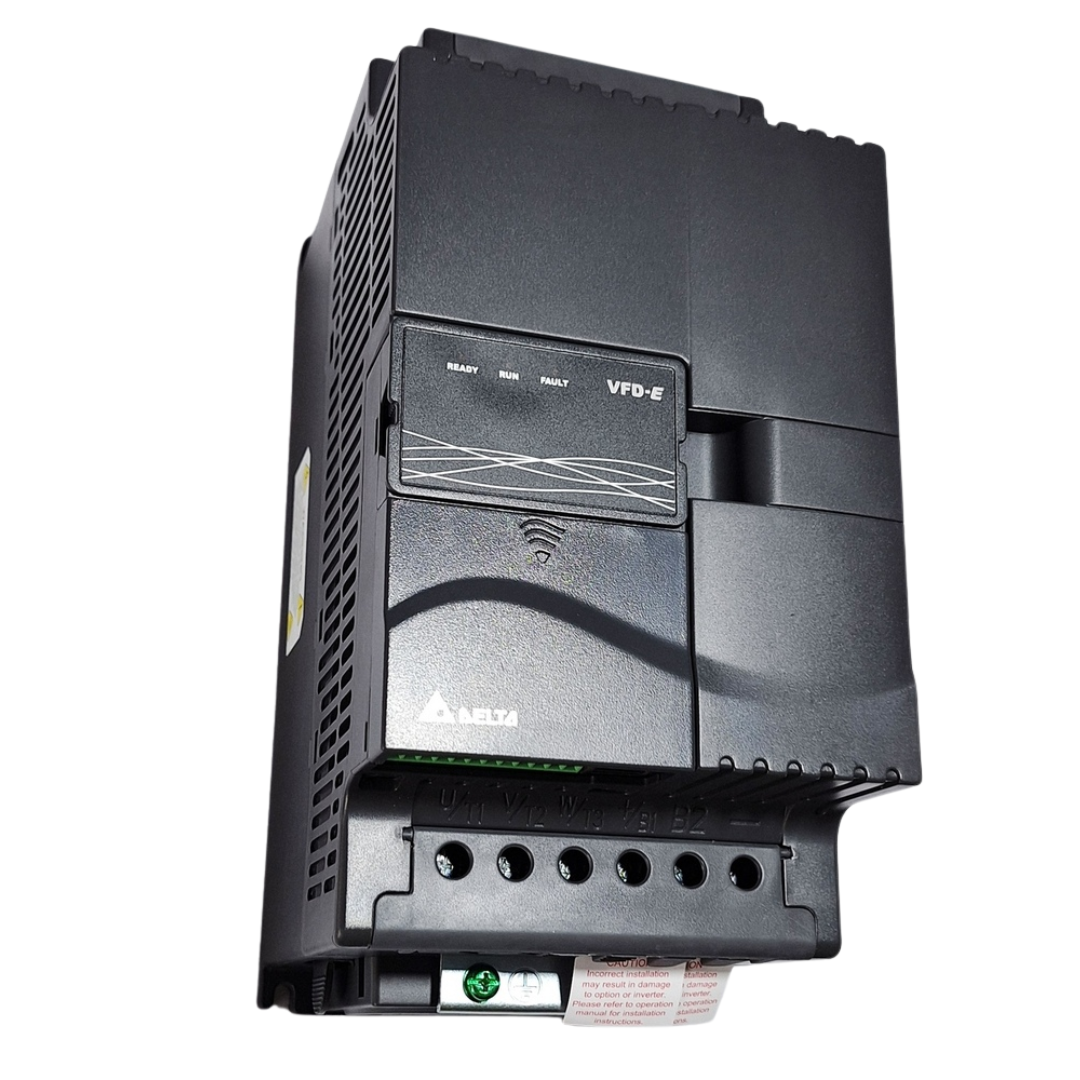

VFD075E43A	10 HP	18 A	19 A	C	~4.2 kg

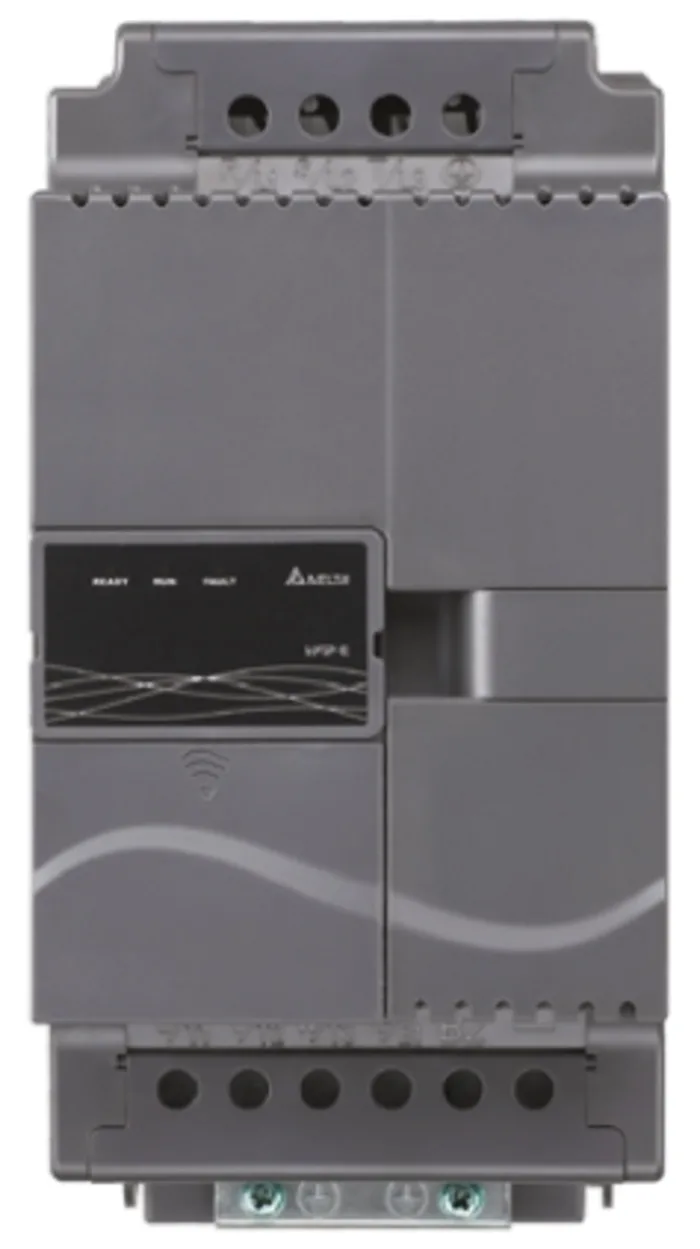

VFD110E43A	15 HP	24 A	26 A	C	~4.2 kg

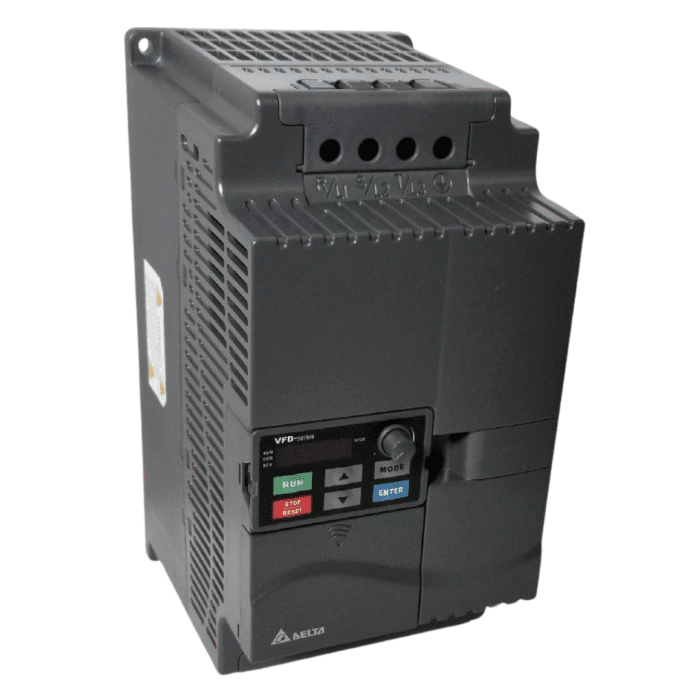

VFD150E43A	20 HP	32 A	35 A	D	~7.5 kg

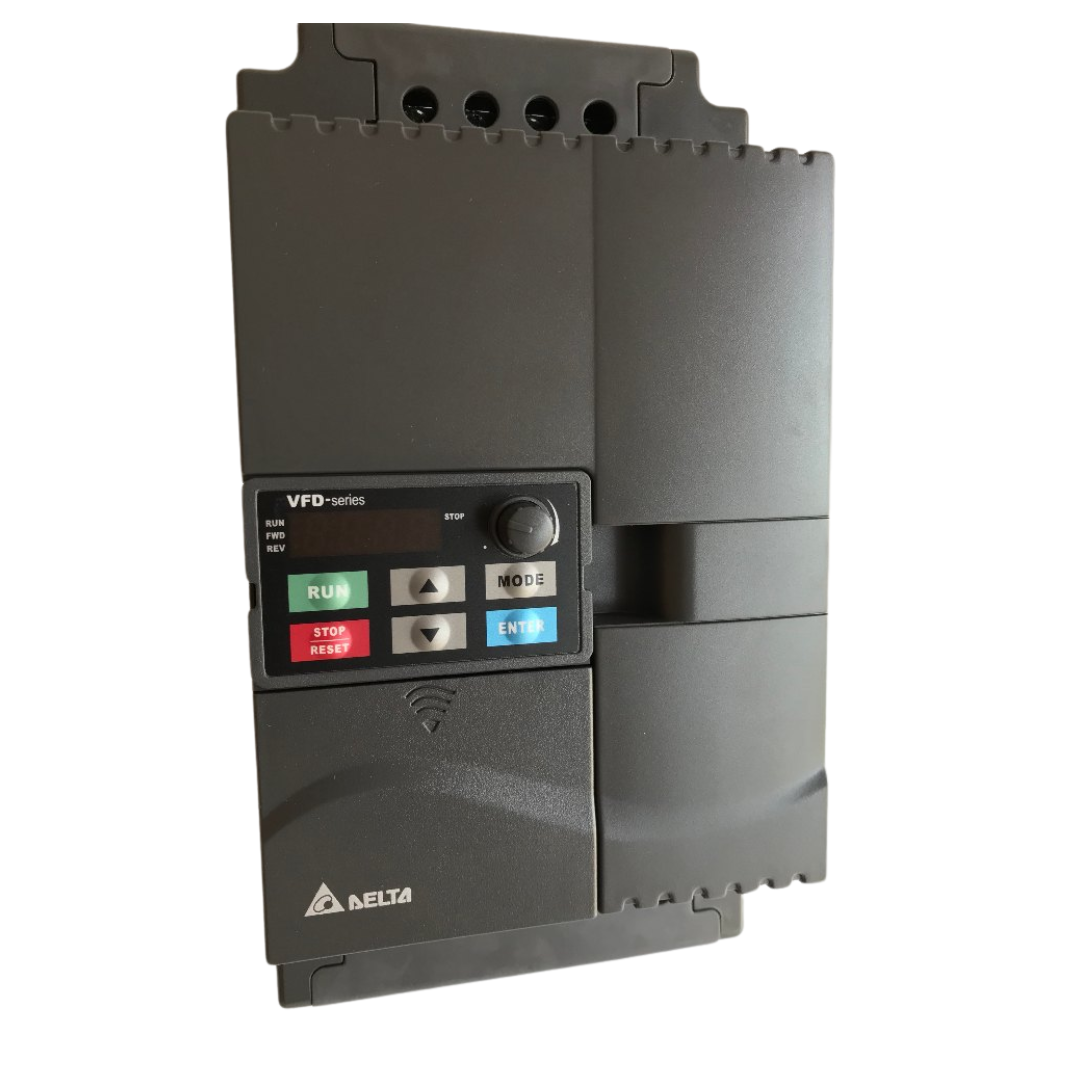

VFD185E43A	25 HP	38 A	41 A	D	~7.5 kg

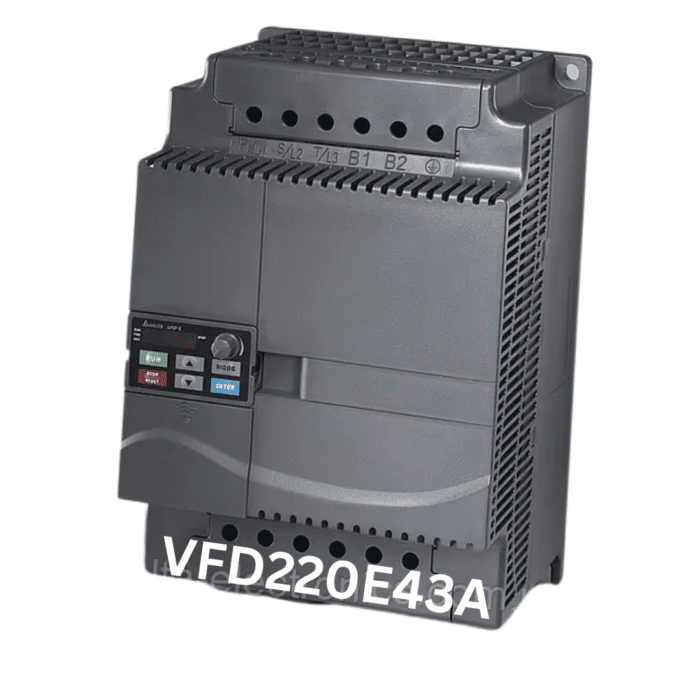

VFD220E43A	30 HP	45 A	49 A	D	~7.5 kg

Additional information

Weight	N/A
HP	0.5HP, 1 HP, 2 HP, 3 HP, 5 HP, 7.5HP, 10HP, 15HP, 20HP, 25HP, 30HP
Model No.	VFD004E43A, VFD007E43A, VFD007E43T, VFD015E43A, VFD015E43T, VFD022E43A, VFD037E43A, VFD055E43A, VFD075E43A, VFD110E43A, VFD110E43S, VFD150E43A, VFD185E43A, VFD220E43A
Series	E
