Delta DVP32SN11TN | 32-Channel Digital Output PLC Expansion Module

Original price was: ₹8,550.00.Current price is: ₹4,788.00.

Delta DVP32SN11TN is a 32-channel digital output PLC expansion module with NPN transistor outputs, 24 V DC power supply, and DIN rail mounting. Suitable for Delta DVP-Slim Series PLCs.
Note: Freight & GST excluded
Compare
Add to wishlist
SKU: DVP32SN11TN Categories: , , Tags: , ,
Description

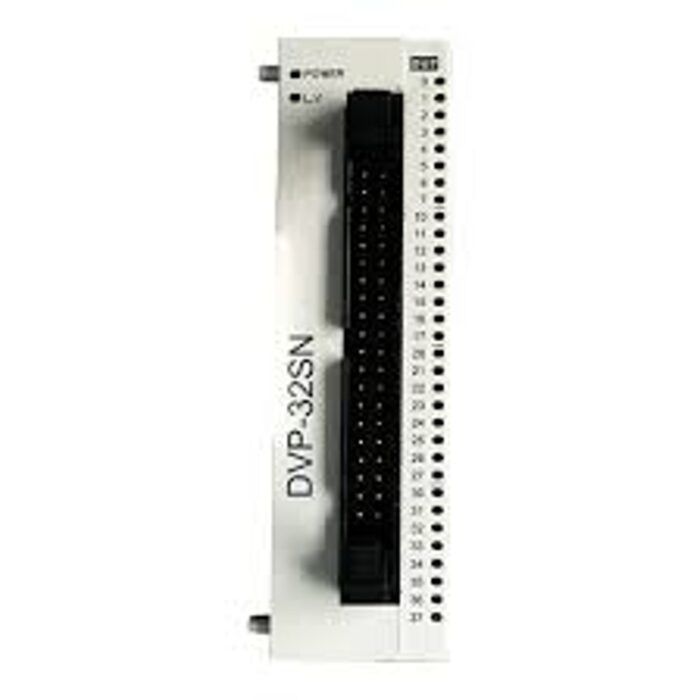

Delta DVP32SN11TN – 32-Channel Digital Output PLC Expansion Module

The Delta DVP32SN11TN is a high-density digital output PLC expansion module from the Delta DVP-Slim Series, designed to seamlessly integrate with Delta PLCs. This module offers 32 NPN transistor outputs, making it ideal for applications requiring reliable digital signal processing.

🔍 Key Features – DVP32SN11TN

  • Module Type: Digital Output (DO)

  • Digital Outputs: 32 channels (NPN Transistor)

  • Output Voltage: 24 V DC

  • Output Current: 0.3 A per point

  • Power Supply: 24 V DC

  • Mounting Type: DIN Rail

  • Termination Style: Rectangular Connector

  • Operating Temperature: 0°C to 55°C

  • Ingress Protection: IP20

  • Certifications: CE, cULus

📐 Physical Dimensions

  • Width: 25.2 mm

  • Height: 90 mm

  • Depth: 60 mm

  • Weight: Approximately 190 g

🧰 Typical Applications- DVP32SN11TN

  • Industrial automation systems requiring high-density digital outputs

  • Control of lamps, relays, solenoids, and basic actuators

  • Integration with SCADA systems for digital signal monitoring and control

  • Expansion of output capabilities in existing Delta PLC setups
