STB151512 – nVent HOFFMAN Mild Steel Terminal Box, 150x150x120mm, IP66

STB151512 – nVent HOFFMAN Mild Steel Terminal Box, 150x150x120mm, IP66

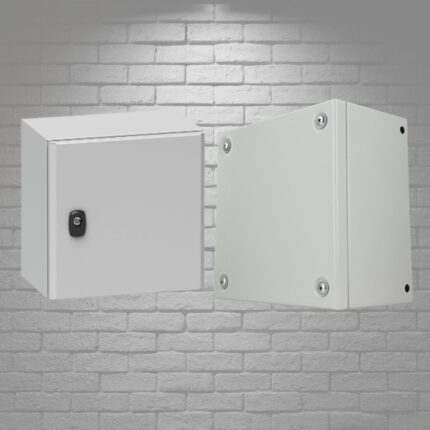

The STB151512 is a compact and durable mild steel terminal box from nVent HOFFMAN. It is designed for industrial automation, electrical safety, and process control applications.

With an IP66 rating, it provides strong protection against dust and water, making it ideal for harsh indoor environments.

Key Features:

✅ Durable Mild Steel Construction – Made from 1.2mm thick mild steel with a RAL 7035 light gray powder-coated finish for enhanced durability and corrosion resistance.

✅ Sealed for Maximum Protection – The one-piece polyurethane gasket ensures a tight seal, blocking dust and moisture.

✅ Easy & Secure Mounting – Includes four 8.5mm diameter holes for quick and stable wall installation.

✅ Reliable Earthing System – Comes with M8x18mm earthing studs on both the body and cover, along with M8 nuts, earthing washers, and labels.

✅ Complete Installation Kit – Supplied with the body, cover, cover screws, fixing screws, cover plugs, and earthing accessories for a hassle-free setup.

Technical Specifications:

• Brand: nVent HOFFMAN

• Material: 1.2mm Mild Steel

• Finish: Powder-coated, RAL 7035 Light Gray

• Dimensions: 150mm (H) x 150mm (W) x 120mm (D)

• Protection Rating: IP66, NEMA 4, 12, 13, IK08

• Certifications: UL 508A, IEC 62208, CE, UKCA, DNV, EAC

• Weight: Approx. 1.5kg
